Description

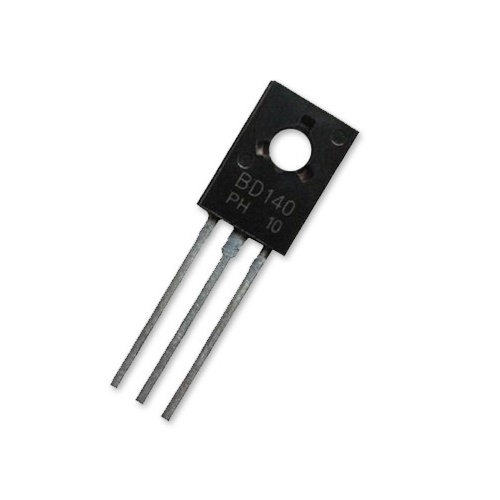

BD140 is a famous PNP type transistor, it is used in many electronics circuits, this transistor can handle current up to 1.5A or 1500mA, due to which it can be used to drive loads up to 1.5A in electronic circuits.

SPECIFICATIONS:

• Package Type: TO-126
• Transistor Type: PNP
• Max Collector Current(I_C): -1.5A
• Max Collector-Emitter Voltage (V_CE): –80V
• Max Collector-Base Voltage (V_CB): –80V
• Max Emitter-Base Voltage (VEBO): –5V
• Max Collector Dissipation (Pc): 12.5 Watt
• Max Transition Frequency (fT): 190 MHz
• Minimum & Maximum DC Current Gain (h_FE): 25 – 250
• Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

APPLICATIONS:

• Audio Amplifiers
• Switching Loads under 1.5A
• Battery Chargers
• Power Supplies
• Motor Driver
• Darlington Pair
