Description

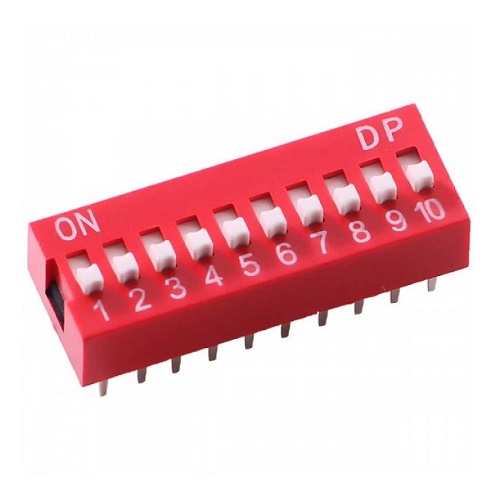

Dip Switch- 10 Position

This is a combination of  SPST switches under one roof

Specification:

• Name: DIP Switch
• Main Material: Plastic, Metal
• Type: Horizontal Type & Slide
• Switching Rating: 100mA DC 50V
• Switching Rating: 25mA DC 24V
• Initial Contact Resistance: 50mΩ
• Typical Contact Resistance: 100mΩ
• Position Number:10
• Color: Any
• Pin Pitch: 2.54 mm

Features :

• Standard Mounting
• SPST Switches
• Each Contact Numbered
• Leads Pre-Tinned,
• New, Never Used.
• RoHS Compliant.
