Description

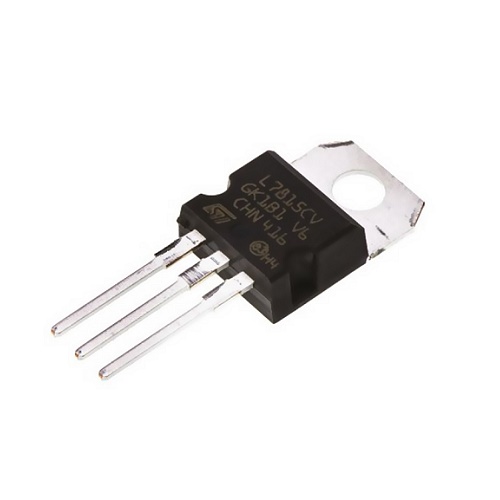

LM7815 Voltage Regulator

Technical Specifications:

• TO-220 Package
• The Output current is 1A to 1.5A
• Built-in short circuit shutdown function
• Buit-in over heat shutdown function
• Low cost
• Reliable and long life to use commercially
• Stable and fixed output of 15V DC
• Maximum input voltage is upto 35V DC
• The standby current only 8mA

7815 Regulator Features

• 15V Positive Voltage Regulator
• Minimum Input Voltage is 17V
• Maximum Input Voltage is 35V
• Output Current: 1.5 A
• Internal Thermal Overload and Short circuit current limiting protection is available.
• Junction Temperature maximum of 125 degree Celsius
• Available in TO-220, TO-3 and KTE package

Applications:

• Voltage Step Down Circuits
• Voltage Converter Circuits
• Power Supply Circuits
• Motor Drivers
• Battery Chargers Circuits
• Solar Power Supplies
• Microcontroller Related Applications

Replacement and Equivalent / Other Part Numbers:

LM2940CT-15, LM340T–15, LM340AT–15 voltage regulators can be used as equivalent of LM7815, but if somehow you are unable to find these then you can also use LM317 IC that you can find easily and set it on 15V fixed output.
