Description

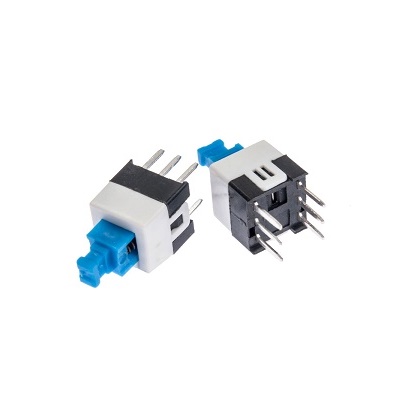

Push Switch 6 Pin DPDT Self-Locking Toggle On/Off Type Telephone Switch
This 8.5×8.5 mm 6 Pin DPDT Self-Lock lock push switch” is also named “Mini Self Locking Push Switch and Mini DPDT Push Switch”. It’s Unlike momentary switches which connect the wires of the switch only for a second (or till it is in pressed / on condition), this switch retains its ON-OFF state until pushed again. For example, if you push it once so that it’s turned on state, and it remains in ON state till it’s pressed again
Features
- Self-Locking Push Switch
- DPDT Toggle Type
- Lightweight Construction
- Standard PCB Mounting Hole
- Self Locking (Toggle Type)
- Maximum voltage: 50V DC
- Operating current : 0.5 A
- Operation force :1.8N±0.3N
- Operating temperature range :-5~35℃
- Contact resistance : 100mΩ max
- Heat resistance :80±2℃,72h
- Size: 8.5 x 8.5 mm
