Description

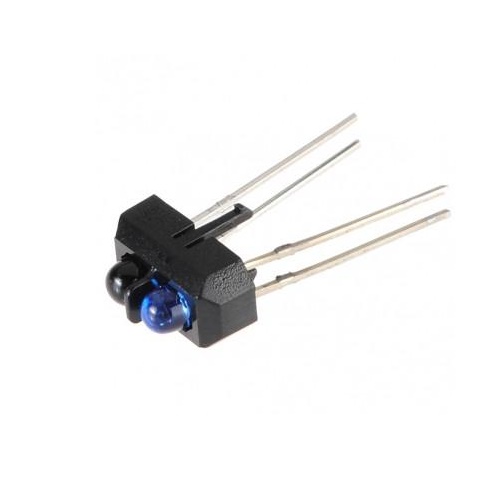

TCRT5000 Reflective Optical Sensor

The TCRT5000 is a reflective sensor which include an infrared emitter and phototransistor in a leaded package which blocks visible light. The package includes two mounting clips.

Specification:

Input(Emitter)

• Reverse Voltage:5V
• Forward Current:60mA
• Forward Surge Current:3A
• Power Dissipation:100mW
• Junction Temperature:100°C

Output(Detector)

• Collector emitter voltage:70V
• Collector Current:100mA
• Power Dissipation:100mW
• Junction Temperature:100°C

Feature:

• Package Type: leaded
• Detector Type: Phototransistor
• Dimension: (LxMx H in mm): 10.2×5.8×7)

Datasheet
